Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 550 warp shaft discs all year round_ 1515 textile accessories_ GA615 loom disk: the warp shaft disk of the loom is mainly used to accommodate the warp yarns required for weaving. The warp yarns are sent mechanically according to the weaving speed. The warp yarns of the loom are wound between two 550 warp shaft disks after orderly arrangement. The part number of warp shaft disc is B7, which is divided into Y-type and H-type. They belong to the category of 1511 / 1515 textile accessories. The inner hole diameter is 110mm, and their outer diameter has several specifications: 495mm, 550mm and 600mm (the threaded inner holes 600mm and 680mm are used for rapier machines, which are different from this).

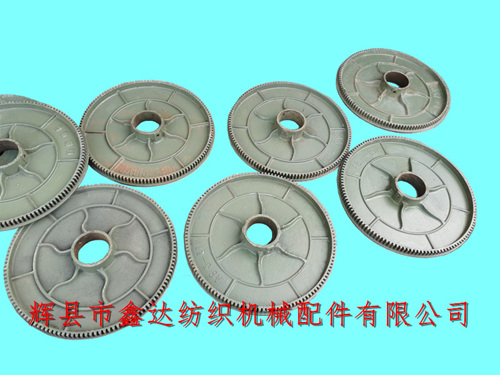

The above figure shows the warp shaft disk of the loom with an outer diameter of 550mm. The number of teeth is 116 and the diameter pitch is 6. It is applicable to the loom of model 1515 or GA615. During installation, b7y-1 warp shaft special washer (pig iron), m10x40 bolt, bm10 nut and bm10 washer shall be used.
The warp shaft disk of the loom is fixed at both ends of the B15, 4102 (GA615) or 3434 warp shaft coil. According to the width of the loom, the coil length used by the 1350mm (56 inch) loom is 1685mm; The coil length used by the 1500mm (63 inch) loom is 1859mm; The length of the warp coil used by the 1600mm (67 inch) loom is 1960mm; A 75 inch (1800 mm) loom uses a warp coil length of 2164 mm.
The weight of a single 550mm warp shaft disc is about 14kg, the minimum order quantity is 10, and the delivery time is about 5-7 days. If textile customers need to purchase 550 textile discs, loom warp shaft discs, GA615 loom discs and other textile accessories, please contact Mr. Yang of Huixian Xinda Textile accessories for details!
